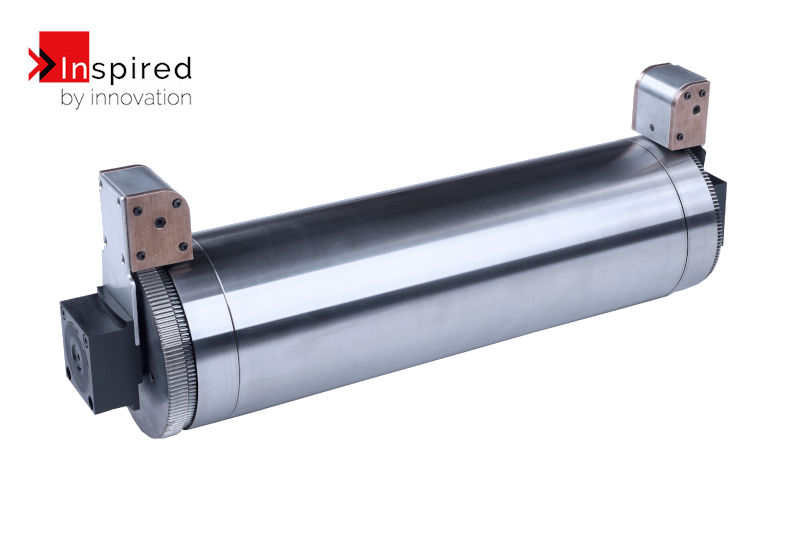

Rotometal Adapted Gap (RAG) System is an adjustable Anvil Cylinder that allows precise adaptation of the gap between Anvil and the Magnetic Cylinder , guaranteeing the highest possible quality of the punching process.
Do you have any questions? Do you want to order? Contact us!
Warranty: 12 months Production lead time: to be agreed
Thanks to the use of Rotometal’s adaptive system, the gap can be adapted depending on the variables. These can include die wear, quality and thickness of the substrate or other variables that may adversely affect the quality of punching. The control is carried out by means of 2 knobs placed according to your requirements. Each of the knobs independently controls one of the tracks, adjusting the gap for the best punching quality. RAG System can successfully replace an existing Anvil cylinder, making the work easier and more efficient.
RAG System includes
Control knobs with indicator
The ability to replace your current Anvil
The gap can be adjusted every 0.5 µm
Adjustment range +/- 100 µm
Adjustment range ± 0.1 mm
Adjustment for each side of the cylinder both during standstill and during operation
Extended cylinder and die life, possibility to continue precise cylinder operation by reducing the gap
Possibility to work with various material thicknesses, including thin films which require high precision cutting
Possibility to set cut-through or kisscut on the same tool
No overheating problems and stable operation at speeds of up to 180 m/min
Independent adjustment on both sides
Positive environmental impact - less frequent cylinder replacements
Reduces machines’ tooling and service times to a minimum
RAG assembly is possible without modifying the blanking section
Easy access to lubrication nipples, grease is used for lubrication
Before being dispatched to the customer, each product is checked by our Quality Control Department for compliance with the technical drawing and accepted in-house standards - a structured inspection scheme.
